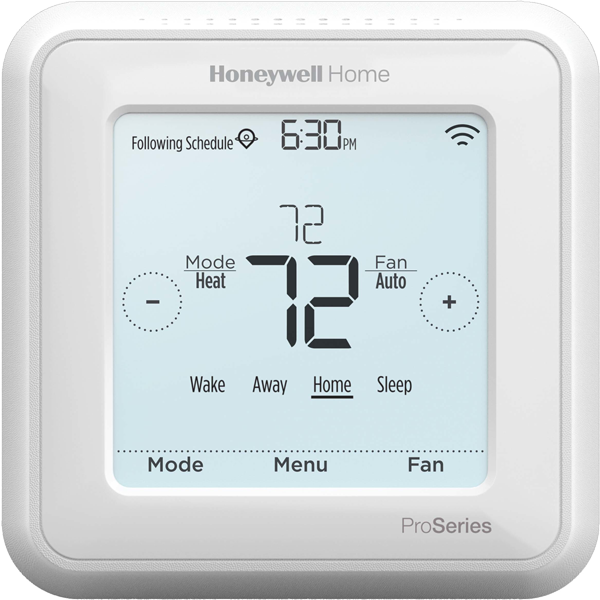

T6 PRO SMART THERMOSTAT MULTI-STAGE 2 HEAT/2 COOL
|
|
THERMOSTAT TYPE
|
Programmable, Communicating, Digital, Low Voltage
|
|
STAGES
|
Up to 2 Heat/1 Cool Heat Pump, Up to 2 Heat/2 Cool Conventional
|
|
SMART HOME INTEGRATION
|
Yes
|
|
PROGRAM MODES
|
7-Day Programmable, 5-1-1 Programmable, 5-2 Programmable, Geofencing, Manual / Not Programmed
|
|
APPLICATION
|
24 V AC systems, gas, oil, electric warm air, hot water coil, electric hydronic, steam/gravity systems
|
|
TOUCHSCREEN
|
Yes
|
|
WARRANTY
|
5 Years
|
|
INCLUDES
|
T6 PRO Wi-Fi Thermostat, UWP Mounting System, Honeywell Home Standard Installation Adapter (J-box adapter), Decorative Cover Plate, Screws and anchors, Professional Install Guide, Getting Started Guide
|
|
PRODUCT HEIGHT
|
4.06 in, 104 mm
|
|
PRODUCT WIDTH
|
4.06 in, 104 mm
|
|
COLOR
|
White
|
|
BACKLIGHT OPTIONS
|
Adjustable
|
|
BATTERY LIFE
|
1 Year
|
|
BATTERY SIZE
|
AA
|
|
BATTERY TYPE
|
Alkaline
|
|
CLOCK TYPE
|
Year Clock
|
|
COMMUNICATION TYPE
|
WiFi
|
|
DEMAND RESPONSE
|
Yes
|
|
DISPLAY TYPE
|
Touch Screen
|
|
FAN FUNCTION
|
Cycled, Continuous
|
|
NUMBER OF BATTERIES
|
2
|
|
OPERATING RELATIVE HUMIDITY (MAX)
|
90% Non-condensing
|
|
OPERATING RELATIVE HUMIDITY (MIN)
|
5% Non-condensing
|
|
REDLINK
|
No
|
|
RUNNING CURRENT
|
0.02 A to 1.0 A running
|
|
TEMPERATURE ACCURACY
|
±0.5 °C, ±1 °F
|
|
WIFI
|
Yes
|
|
WIFI SPECIFICATIONS
|
802.11b, 802.11g, 802.11n, 2.4GHz range
|
|
ALERTS AND REMINDERS
|
High Indoor Temperature, Low Indoor Temperature, Sensor Error
|
|
AMBIENT OPERATING TEMPERATURE (MIN)
|
37 °F, 2.8 °C
|
|
CONTROL FUNCTIONS
|
Heating
|
|
DIFFERENTIAL TEMPERATURE
|
± 1 °F, ± 0.5 °C
|
|
DISPLAY SIZE
|
6.89 sq. in.
|
|
INTERSTAGE DIFFERENTIAL TEMPERATURE
|
1 to 1.5 °F, 0.5 to 1°C
|
|
SENSOR TYPE
|
Thermistor
|
|
SHIPPING AND STORAGE TEMPERATURE (MIN)
|
-20 °F, -29 °C
|
|
SYSTEM MODE OPTIONS
|
Heat, Off, Cool, Auto, Emergency Heat
|
